Solar Car Battery Maintainer

Boost your car battery for a quick start !

NO MORE DEAD BATTERIES! Keep battery charged in all your vehicles and/or 12VDC battery operated equipments. The new improved BATTERY BOOSTER is uniquely designed to use the sun’s free power to offset natural discharge and the power drain from all car equipments such as alarm, clock, radio, PC etc.

BATTERY BOOSTER IS SMALL BUT MIGHTY. It fits compactly on dash, panel while outputting 17.0 powerful volts and 65 mA min. output current under full sun. The reliable 35 Single Crystal Silicon Solar Cell Array absorb natural light and convert it into low level electrical current. A red dot lights when charging is taking place. Rugged construction from high impact-resistance materials incorporating the latest technology gives the unit long life.

Solar Battery Charger transforms sun power into electricity and maintains the car battery to be fully charged. The solar cells absorb natural light and convert it into low level electrical current to flow charge car battery. When red dot LED alights, charging is taking place; in times of sub-zero weather temperature or car is on a non-activated status, the Solar Battery Charger does the job.

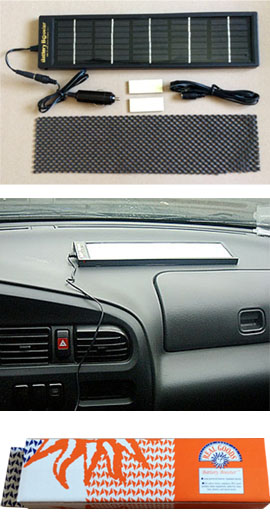

SBB-175 is installation free and self-operational. Simply place the solar panel on the dashboard (directly under the sunlight), and plug into cigarette lighter outlet or connect to a 12V DC fuse block. Rugged, dependable construction, and incorporating the latest technology for a longer lifespan.

Specifications:
Solar Output: Voltage: 17.0V
Current: 65mA min. on a sunny day.
Module Size: 32.4cm x 8.2cm x 1.2cm
Cell Material: 35 Single Crystal Silicon Solar Cell Array
Lead Wire: 18cm with DC terminal plug
Cigarette Lighter Plug Cord: 80cm with terminal jack
Fuse Block Cord: 150cm with terminal jack

Applications:
Use to maintain battery of Auto, RVs, Farm Equipment, Snow Mobiles, and other electrical products such as TV, Radios, Phones, Computers, etc.

INSATLLATION INSTRUCTION:

(1)	Check the function of your cigarette lighter with key removed. If it works, simply connect the solar cell module to the cigarette lighter socket using the cigarette lighter cord. If the lamp lights when the sunlight falling on the solar module, Installation is completed

(2)	Some models of cars show the cig. lighter goes off with key removed. Use the other cord with one end U-terminal connected to the metal or negative and the positive wire to a usable fuse end of the fuse block. If the red lamp lights up when sunlight falling on the solar module. Installation is also completed. Then forget about it!

LIMITED WARRANTY – Manufacturer warrants the Battery Booster to be free from defects in workmanship and material for 90 days from the date of sale to the original consumer.
