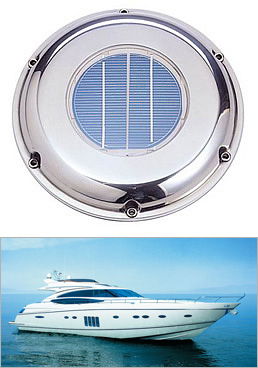

Solar Lo Vent for Boat

Solar Ventilator with Low Profile Vent for Deck Use

Model: SVT-212S/215S/224S/211S/223S

Features:

Fully automatic operation powered by solar energy.
Avoid heat build-up at an area being ventilated.
Prevent mold, condensation, mildew, musty odors, damp, etc.
Water resistant, with overflow preventer.
No noise, safe and pollution free.
One year limited warranty.
Easy installation.
Stainless steel front cowl.

Specifications:

SVT-224S/223S with high quality rechargeable Ni-MH battery for Day & Night use.
SVT-224S/223S with on/off switch.
The structural design of SVT-215S and SVT-224S are explained below:

◆ Intake and exhaust fan blade

This SUNVENT model comes with two fan blades: intake and exhaust, intake fan blade is labeled "INTAKE"
To exchange fan blade, simply pull the existing blade off and insert / push the new one. Care must be taken in pushing or pulling the fan blade so as not to bend the motor shaft; otherwise, its performance would be grossly affected
If you have only one vent installed on your boat, we recommend using only the exhaust fan blade. If you have multiple vents, try different configurations of intake and exhaust to achieve effective cross flow ventilation

This product is a new breakthrough in technology, an extractor ventilator powered by sunlight, ambient lights, no battery, no electricity nor any other man made power source. No wirings, no plugs, no noise, and once installed no running cost whatsoever.

Buyer's Guide

Area Size: Recommended use
Up to 24 ft: 1 exhaust vent
Up to 40 ft: 1 exhaust vent and 1 intake vent
From 40 ft or larger: 2 exhaust vent and 1 intake vent

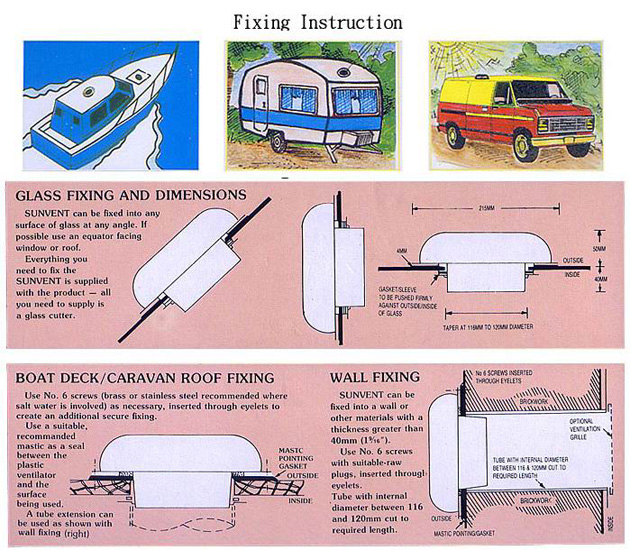

Installation Procedure

Installed on glass:

SUNVENT could be installed into glass surface. However, as much as possible it should be installed facing the sun equator.

Installation accessories are included in this package, all you need is just a glasscutter.

Installed on boat deck / caravan roof:

For additional fixing, insert no. 6 screws through the eyelets; it is recommended to use screws made of brass or stainless where salt water is involved.

Use suitable mastic to seal the area between plastic ventilator and the surface of installation.

For installation purposes, a tubular extension can be use as shown on the right picture.

Installed on wall:

SUNVENT could be installed unto walls or other materials with a thickness greater than 40mm (1 & 9/16 inches).

Through the eyelets insert no. 6 screw along with suitable raw plugs. Use tubular with a diameter of 116 ~ 120mm cut required length.
