Solar Fridge Fan



Solar Fridge Fan Model SF-123


SOLATRON Solar Fridge Fan controls heat built-up in the vent compartment behind your DC refrigerators. This heat built-up can dramatically reduce the efficiency of your refrigerator especially when the DC refrigerator is inside the caravan or boat under a hot sun. With free energy from the sun, you will be able to stop food spoilage and keep it cool.



Features:

  • Powered by solar energy, no battery and no pollution.
  • Reliable single or poly crystal silicon solar cells.
  • Increase cooling efficiency up to 40%.
  • Reduces energy consumption.
  • Prolong refrigerator life.
  • Easy installation.


Specifications:

    • Package Include:
      • One unbreakable solar panel
      • One fan with motor unit
      • Four meters lead wire and two wire nuts
      • Five mounting screws

·  Unbreakable Solar Panel:

  • Cell Material: Single or Poly-crystal silicon
  • Solar Output: 1.7V, 400mA min. under a full sun
  • Dimensions: 12.8cm x 5.9cm x 0.5cm
  • Two Color Lead Wire: 50cm in length with male connector

·  Fan/Motor Unit:

  • A one piece structure with mounting bracket
  • DC Motor: 0.5-6.0V, 1,300RPM
  • Lead Wire: 4m in length with female connector (Wire can be cut into desired length)

·  Dimensions:

  • Fan Blade: Diameter 7.8cm(3")
  • Outer Housing Diameter: 8cm
  • Total Height: 8.5cm
  • Length of Fan Housing: 5cm
  • Center to Center Distance for Fitting Hole: 8.8cm

·  Packing:

  • 60pcs/ctn 5.0cuft / 19.0kg(N.W.) / 20.5kg(G.W.)
  • Each set packed in color printed hard paper box

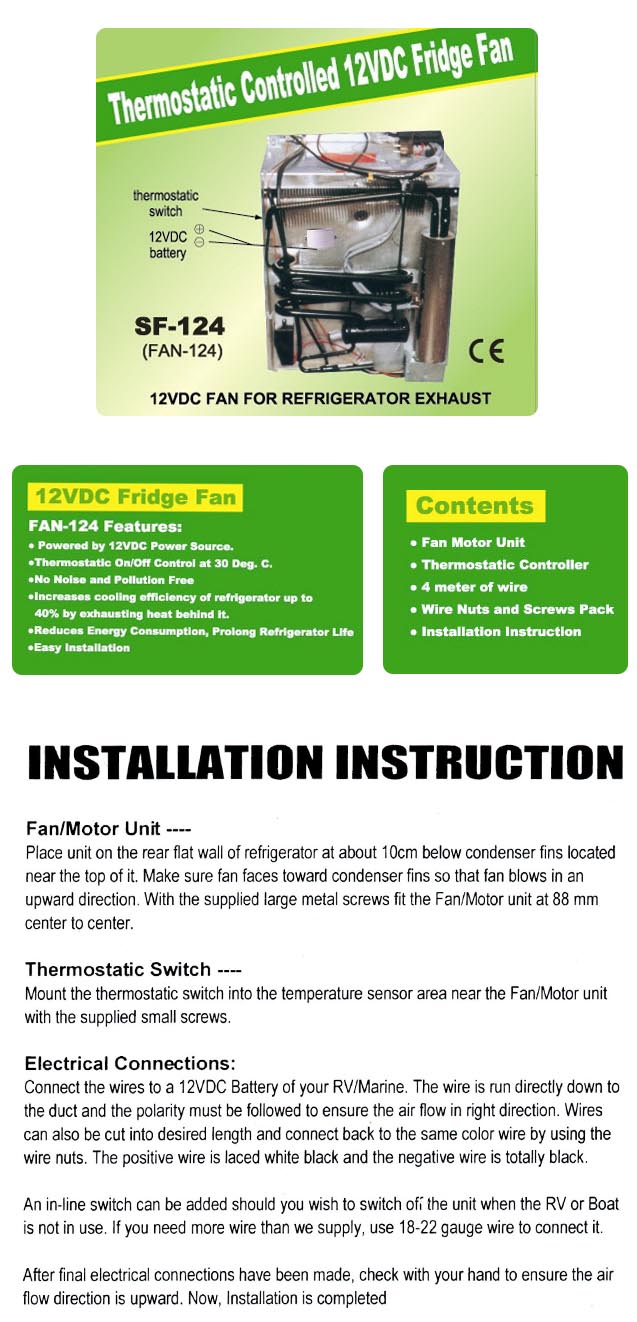

12VDC Power Fridge Fan

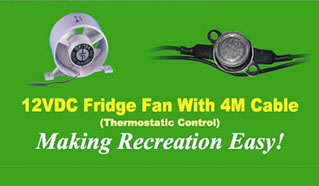

Thermostatic Control 12VDC Fridge Fan with 4M Cable

Model: SF-124


SOLATRON 12VDC Power Fridge Fan controls heat built-up in the vent compartment behind your RV/Marine refrigerators. This heat built-up can dramatically reduce the efficiency of your refrigerator especially when the RV/Marine is under a hot sun.  DC refrigerator is inside the caravan or boat under a hot sun. With the 12VDC Power Fridge Fan, you will be able to stop food spoilage and keep it cool.

Experience shows it will increase cooling efficiency of the refrigerator up to 50%.  For energy saving the fan is controlled to be stopped automatically at the sense temperature of around 30℃.
