Solar Wall Fan

Solar Cell Driven Wall Fan is powered by sunlight, ambient lights, no noise and pollution free

Model: SWF-101/102/103/104


Product Categories:

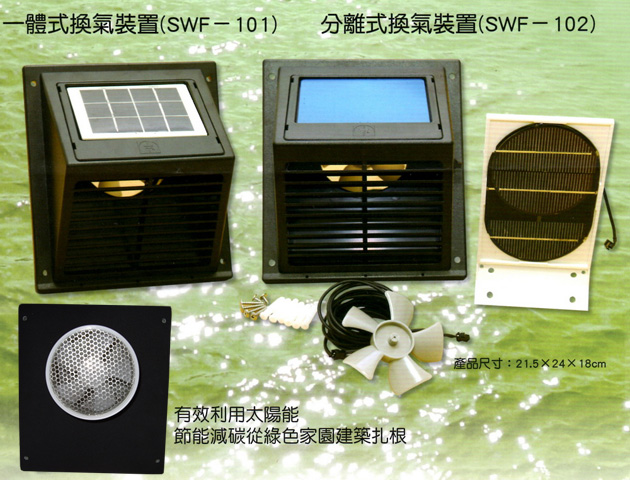

SWF-101 – Integrated Type Extractor Ventilator
SWF-102 – Separated Type Extractor Ventilator
SWF-103 – Integrated Type, Day & Night
SWF-104 – Separated Type, Day & Night

Specifications:

  • SWF-103,104 with high quality rechargeable Ni-MH battery for 24 hours use.
  • SWF-103,104 with on/off toggle switch.
  • With stainless steel mesh to prevent from mosquito or any small insect go into the area being ventilated.
  • The structural design as explained below:

◆ Intake and exhaust fan blade

      • These SUNVENTOR models come with two fan blades: intake and exhaust, intake fan blade is labeled "INTAKE"
      •  To exchange fan blade, simply pull the existing blade off and insert / push the new one. Care must be taken in pushing or pulling the fan blade so as not to bend the motor shaft; otherwise, its performance would be grossly affected
      •   If you have only one vent installed on your boat, we recommend using only the exhaust fan blade. If you have multiple vents, try different configurations of intake and exhaust to achieve effective cross flow ventilation.

Frame Size: 210 x 240mm
Tube Size: >= Diameter 110mm
Solar Panel: 3.5V
Material: ABS Plastic
Color Available: Black or White



Applications:

For caravans, garages, green houses, lorries, vans, offices, home conservations, kitchens or bathroom substation. Lofts, house boxes, stables farm building, unoccupied holiday homes, temporary sites, telephone boxes, and many others.




SWF-101/SW-103


Features:

  • Fully automatic operation powered by solar energy.
  • Avoid heat build-up at an area being ventilated.
  • Prevent mold, condensation, mildew, musty odors, damp, etc.
  • Moves 60 cubic meter of air per hour.
  • Water resistant
  • No noise, safe and pollution free.
  • Two years limited warranty.
  • Easy installation.



Buyer's Guide

  • Area Size: Recommended Use
  • Up to 24 ft: 1 exhaust vent
  • Up to 40 ft: 1 exhaust vent and 1 intake vent
  • From 40 ft or larger: 2 exhaust vent and 1 intake vent

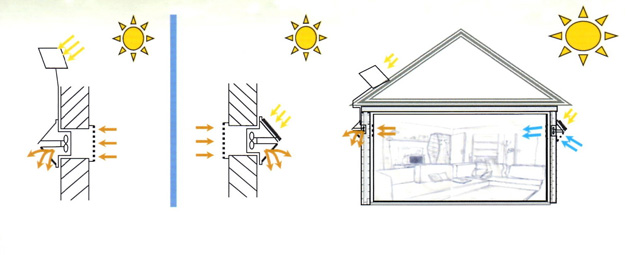

Wall Fan Installation
