Solar Fresh Air Circulator |
|
| |
|
| Solar Ventilator W/Rechargeable Battery for Day & Night Use |
| |
| Model: SVT-024/024S/224S |
| |
Features:
- Fully automatic operation powered by solar energy.
- Avoid heat build-up at an area being ventilated.
- Prevent mold, condensation, mildew, musty odors, damp, etc.
- Moves 850 cubic feet of air per hour.
- Water resistant, with overflow preventer.
- No noise, safe and pollution free.
- One year limited warranty.
- Easy installation.
- Front cowl material available in Stainless
- Steel & ABS plastic.
Specifications:
- With high quality rechargeable Ni-MH battery.
- With concentrator lens top.
- With on/off switch.
- SVT-224S is Lo profile vent good for boat deck use
- The structural design as explained below:
◆ Intake and exhaust fan blade
- This SUNVENT model comes with two fan blades: intake and exhaust, intake fan blade is labeled "INTAKE"
- To exchange fan blade, simply pull the existing blade off and insert / push the new one. Care must be taken in pushing or pulling the fan blade so as not to bend the motor shaft; otherwise, its performance would be grossly affected
- If you have only one vent installed on your boat, we recommend using only the exhaust fan blade. If you have multiple vents, try different configurations of intake and exhaust to achieve effective cross flow ventilation
|
|
 |
SVT-224S |
| |
 |
SVT-024S |
| |
 |
SVT-024 |
| |
 |
| Back Version |
|
| |
|
| |
|
|
Solar Powered Extractor Ventilator |
|
| |
|
| Model: SVT-012/012S/212S, |
| |
| This product is a new breakthrough in technology, an extractor ventilator powered by sunlight, ambient lights, no battery, no electricity nor any other man made power source. No wirings, no plugs, no noise, and once installed no running cost whatsoever. |
| |
| Solar Powered Extractor Ventilator |
| |
Features:
- Fully automatic operation powered by solar energy.
- Avoid heat build-up at an area being ventilated.
- Prevent mold, condensation, mildew, musty odors, damp, etc.
- Moves 11.6 cubic feet of air per minute.
- Water resistant, no-noise, safe and pollution free.
- Two years limited warranty.
- Easy installation.
Applications:
For caravans, boats, green houses, RVs, trucks, lories, vans, offices, home conservations, kitchens or bathroom substation. Lofts, house boxes, stables farm building, unoccupied holiday homes, temporary sites, telephone boxes, and many others.
|
|
|
SVT-012 |
| |
|
SVT-012S |
| |
|
SVT-212S |
| |
 |
| SVT-012_Back |
|
| |
|
| |
|
|
Multi-Function Solar Powered Fan/Vent |
|
| |
|
| Model: SVT-015/015S/215S |
| |
Features:
- Fully automatic operation powered by solar energy.
- Avoid heat build-up at an area being ventilated.
- Prevent mold, condensation, mildew, musty odors, damp, etc.
- Moves 11.6 cubic feet of air per minute.
- Water resistant, no-noise, safe and pollution free.
- One year limited warranty.
- Easy installation.
Specifications:
- SVT-015 and SVT-015S models are with concentrator lens top
- SVT-215S, Lo profile vent good for boat deck use
- Interchangeable intake and exhaust fans
- Structural design as explained below
Intake and exhaust fan blade
- This SUNVENT model comes with two fan blades: intake and exhaust, intake fan blade is labeled "INTAKE"
- To exchange fan blade, simply pull the existing blade off and insert / push the new one. Care must be taken in pushing or pulling the fan blade so as not to bend the motor shaft; otherwise, its performance would be grossly affected
- If you have only one vent installed on your boat, we recommend using only the exhaust fan blade. If you have multiple vents, try different configurations of intake and exhaust to achieve effective cross flow ventilation
|
|
Buyer's Guide
- Area Size: Recommended Use
- Up to 24 ft: 1 exhaust vent
- Up to 40 ft: 1 exhaust vent and 1 intake vent
- From 40 ft or larger: 2 exhaust vent and 1 intake vent
|
|
|
SVT-015 |
| |
|
SVT-015S |
| |
|
SVT-215S |
| |
 |
| SVT-215S(Back)-1 |
|
| |
|
| Model Specifications |
|
Model No. |
Construction |
SVT-012, 015, 024 |
ABS Plastic Cowl + Clear Top Lens |
SVT-012S, 015S, 024S |
Stainless Steel Cowl + Clear Top Lens |
SVT-212S, 215S, 224S |
Stainless Steel Cowl + Lo Vent + Overflow Preventer |
|
| |
|
 |
| |
|

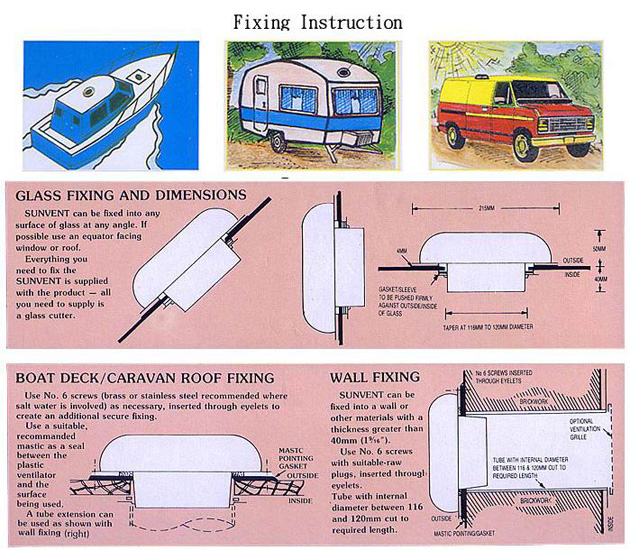

- Installation Procedure
- Installed on glass:
- SUNVENT could be installed into glass surface. However, as much as possible it should be installed facing the sun equator.
- Installation accessories are included in this package, all you need is just a glasscutter.
- Installed on boat deck / caravan roof:
- For additional fixing, insert no. 6 screws through the eyelets; it is recommended to use screws made of brass or stainless where salt water is involved.
- Use suitable mastic to seal the area between plastic ventilator and the surface of installation.
- For installation purposes, a tubular extension can be use as shown on the right picture.
- Installed on wall:
- SUNVENT could be installed unto walls or other materials with a thickness greater than 40mm (1 & 9/16 inches).
- Through the eyelets insert no. 6 screw along with suitable raw plugs. Use tubular with a diameter of 116 ~ 120mm cut required length.
|
| |
|
|
|
