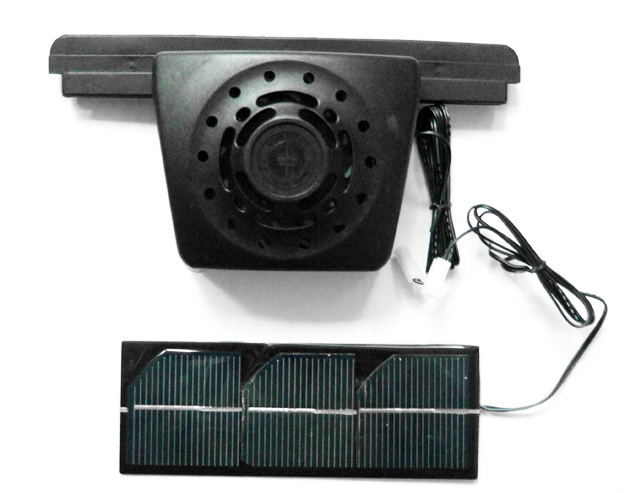

Powered by solar energy, no consumption of car battery, and pollution free.
Equipped with crystalline solar panel that provides powerful solar output current of more than 1000 mA; creates enough torque to ensure high air ventilating capability.
Simple DIY installation, and could fit into most vehicle with sliding window glass of curved or straight top. Good for cars either with clear, dark windows or window attached with sun-film.
No drilling, no nailing and safe.
Design to prevent water penetration during car washing.
Security sealing belt and Vacuum suction cap for safety installation.
Equipped with movable remote array that could best access sunlight into the solar cells, ensuring an effective solar application.
Equipped with crystalline solar panel that provides powerful solar output current of more than 1000 mA; create enough torque to ensure high air ventilating capability.
Utilizing high quality and powerful solar electrical generator to drive the fan motor. Vent out hot air to reduce temperature and humidity inside a parked car.
SUNVENT : SOLAR AUTO AIR COOLER – SAC-3100A INSTALLATION INSTRUCTION

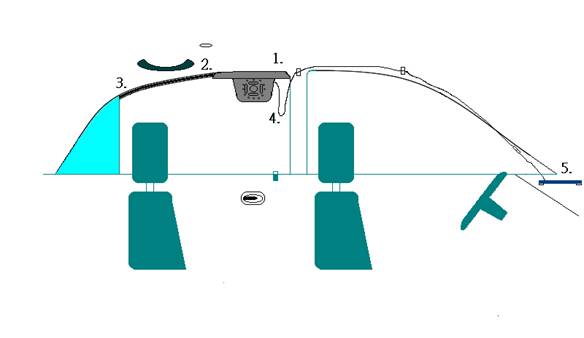

Choose the window to be mounted. Partly open the window and hook SUNVENT on the window with one end insert into the window frame of the vertical glass edge.
Insert the safety belt into the other end of the SUNVENT to the length of about 2-3 cm. Hook the SUNVENT and belt assembly onto the glass extend to the whole length of glass top.
Cut off the additional length of safety belt and shape it to end profile of the window frame.
Fix the safety belt with the aid of the supplied adhesive foam stripes mounted on the top of glass. Slowly close up the window, until the top of SUNVENT and safety belt both slot into the upper frame of the window. Be sure NOT to leave any gap at both ends
Connect the lead wire from SUNVENT thru the sun-shield to the lead wire of solar panel with each terminal connector. Leave about 15 – 20 cm of wire before going through the supplied wire tie unit to give room for strain of wire when the door is happen to be opened. Use the supplied wire ties to fit the lead wire on the top frame of the front window. . Hide the excessive wire to the back of sun-shield.
Solar panel attached with the anti-slip pad at back side. Put the panel on dashboard .with solar
cells side face toward the most sunny direction. When lights falling on the solar panel, the fan
will rotate in clockwise direction. Installation is completed.
